Selector Switch

• Automation Grade
• Manual

• Circuit Type
• SPDT

• Color
• Black/Grey Actuator with Silver Trim

• Contact Resistance
• 50 m

• Current Rating
• 10A

• Finish Type
• Glossy

• Insulation Resistance
• 100 M (at 500V DC)

• Material
• Plastic and Metal Alloy

• Max. Current
• 10A

• Max. Voltage
• 440V AC

• Mechanical Life
• 1,000,000 operations

• Mounting Type
• Panel Mount

• No Of Poles
• 1 Pole

• Number of Module
• Single Module

• Operating Temperature
• -25C to +55C

• Product Type
• 2 Position Selector Switch

• Protection Level
• IP65

• Rated Voltage
• 220V/440V AC

• Response Time
• Instantaneous (Mechanical)

• Size
• 22 mm mounting diameter

• Stoke
• 2 Positions (Maintained)

• Temperature Range
• -25C to +55C

• Weight
• Approx. 50g

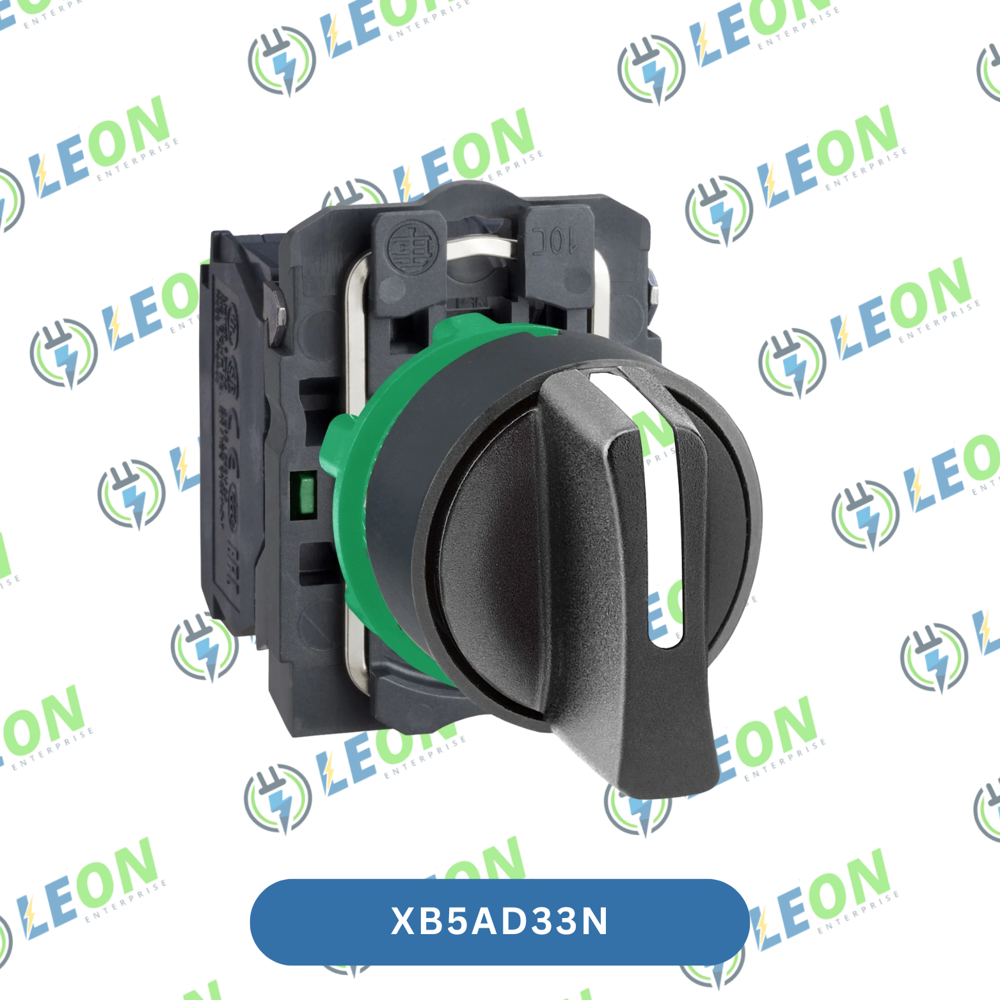

• Automation Grade
• Industrial

• Circuit Type
• 2 NO (Normally Open)

• Color
• Black

• Contact Resistance
• <= 25 mOhm

• Current Rating
• 10 A

• Finish Type
• Glossy/Matte

• Insulation Resistance
• >= 10 MOhm at 500 V DC

• Material
• Plastic (Polycarbonate) / Metal

• Max. Current
• 10 A

• Max. Voltage
• 600 V AC

• Mechanical Life
• 1,000,000 cycles

• Mounting Type
• Panel Mount

• No Of Poles
• 2 (2 NO contacts)

• Number of Module
• 1

• Operating Temperature
• -40C to +70C

• Product Type
• Selector Switch

• Protection Level
• IP66, IP67, IP69, IP69K, Type 4X, 13

• Rated Voltage
• 600 V

• Response Time
• <= 20 ms

• Size
• 22 mm mounting diameter

• Stoke
• 3 positions (Stay Put)

• Temperature Range
• -40C to +70C

• Weight
• Approx. 65 g
